AS-289R2 Thermal Printer Shield

» » Raspberry Pi

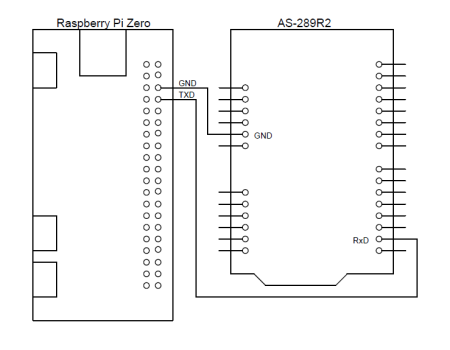

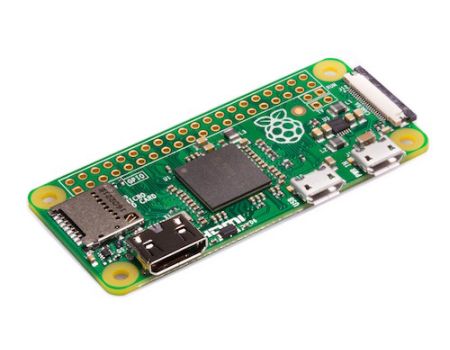

Raspberry Pi Zero

RASPBERRY PI



Please confirm the position of jumper(JP5)
/boot/cmdline.txt, delete "console=serial0,115200"

[ Python sample ]

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# coding: utf-8

# Thermal Printer Shield for Raspberry Zero
# Model:AS-289R2 & AS-289R
# Python source code
# NADA ELECTRONICS, LTD.
# http://www.nada.co.jp
# By. Takehiro Yamaguchi

import serial

ser = serial.Serial("/dev/ttyAMA0", baudrate = 9600, timeout = 2)

# Text Print
ser.write("Thermal Printer Shield\r");
ser.write("Text Printing.\r");
ser.write("\r\r");  # Line Feed x 2

# QRcode Print
ser.write(chr(29))  # 0x1D
ser.write(chr(120)) # 0x78
ser.write(chr(76))  # 0x4C
ser.write(chr(4 ))  # 0x04
ser.write("TEST")   # DATA
ser.write("\r\r\r\r\r\r");  # Line Feed x 6

ser.close()

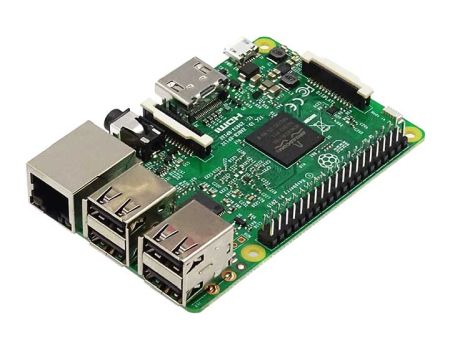

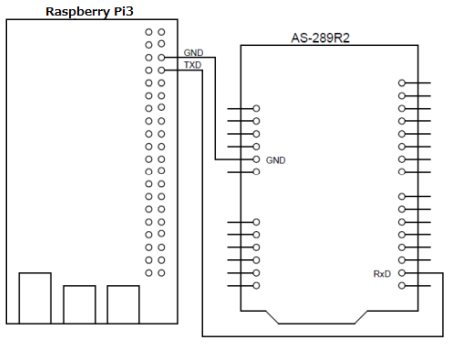

Raspberry Pi3 Model B

RASPBERRY PI



Please confirm the position of jumper(JP5)
/boot/cmdline.txt, delete "console=serial0,115200"
/boot/config.txt, add the line "core_freq=250" and "enable_uart=1".

[ Pythonサンプル ]

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# coding: utf-8

# Thermal Printer Shield for Raspberry Pi3
# Model:AS-289R2 & AS-289R
# Python source code
# NADA ELECTRONICS, LTD.
# http://www.nada.co.jp
# By. Takehiro Yamaguchi

import serial

ser = serial.Serial("/dev/ttyS0", baudrate = 9600, timeout = 2)

# Text Print
ser.write("Thermal Printer Shield\r");
ser.write("Text Printing.\r");
ser.write("\r\r");  # Line Feed x 2

# QRcode Print
ser.write(chr(29))  # 0x1D
ser.write(chr(120)) # 0x78
ser.write(chr(76))  # 0x4C
ser.write(chr(4 ))  # 0x04
ser.write("TEST")   # DATA
ser.write("\r\r\r\r\r\r");  # Line Feed x 6

ser.close()

[ C++ sample ]
Wiring Pi - GPIO Interface library

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
/*
 * Thermal Printer Shield for Raspberry Pi3
 * Model:AS-289R2 & AS-289R
 * Sample Sourcecode
 * NADA ELECTRONICS, LTD.
 * http://www.nada.co.jp
 * By. Takehiro Yamaguchi
*/

#include <stdio.h>
#include <string.h>
#include <wiringPi.h>
#include <wiringSerial.h>

int main()
{
    int fd;
    if ((fd = serialOpen ("/dev/ttyS0", 9600)) < 0) {
        printf ("can not open serialport.");
    }

    while(1) {
        /* Text Print */
        serialPrintf(fd,"Thermal Printer Shield\r");
        serialPrintf(fd,"Text Printing.\r");
        serialPrintf(fd,"\r\r");    // Line Feed x 2
        /* QRcode Print */
        char GsQr[] = { 0x1D,0x78,0x4C,0x04,0x54,0x45,0x53,0x54 };
        int i;
        for (i = 0; i < sizeof(GsQr); i++) {
            serialPutchar(fd,GsQr[i]);
        }
        serialPrintf(fd,"\r\r\r\r\r\r");    // Line Feed x 6
        /* Wait */
        delay (5000);   //5sec
    }

    return 0;
}

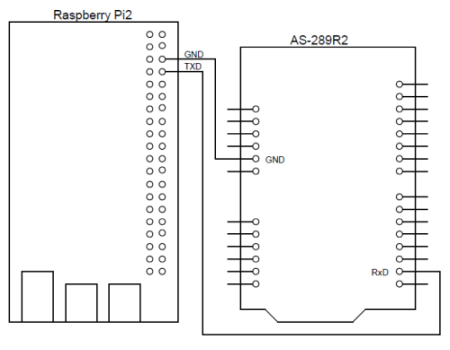

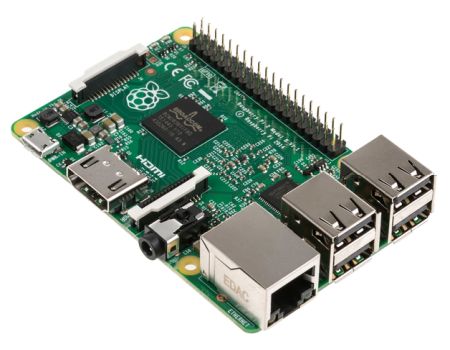

Raspberry Pi2 Model B

RASPBERRY PI



Please confirm the position of jumper(JP5)

[ C++サンプル ]
Wiring Pi - GPIO Interface library

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
/*
 * Thermal Printer Shield for Raspberry Pi2
 * Model:AS-289R2 & AS-289R
 * Sample Sourcecode
 * NADA ELECTRONICS, LTD.
 * http://www.nada.co.jp
 * By. Takehiro Yamaguchi
*/

#include <stdio.h>
#include <string.h>
#include <wiringPi.h>
#include <wiringSerial.h>

int main()
{
    int fd;
    if ((fd = serialOpen ("/dev/ttyAMA0", 9600)) < 0) {
        printf ("can not open serialport.");
    }

    while(1) {
        /* Text Print */
        serialPrintf(fd,"Thermal Printer Shield\r");
        serialPrintf(fd,"Text Printing.\r");
        serialPrintf(fd,"\r\r");    // Line Feed x 2
        /* QRcode Print */
        char GsQr[] = { 0x1D,0x78,0x4C,0x04,0x54,0x45,0x53,0x54 };
        int i;
        for (i = 0; i < sizeof(GsQr); i++) {
            serialPrintf(fd,GsQr[i]);
        }
        serialPrintf(fd,"\r\r\r\r\r\r");    // Line Feed x 6
        /* Wait */
        delay (5000);   //5sec
    }

    return 0;
}

↑
